CoverCat

CoverCat

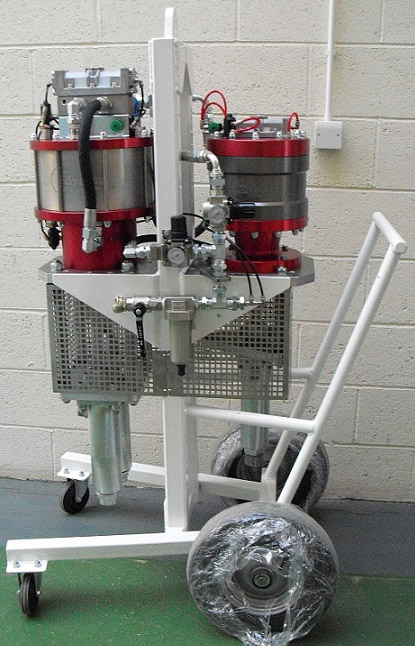

CoverCat 300HV

Description

The CoverCat 300HV is a Compressed Air powered High Volume metering and spray or dispensing pump mounted on a frame or cart unit with option lift frame avaiable.

It is set to a fixed dispense ratio of 1:1 for use with Solvent Free 1:1 mix ratio plural component materials

It can be fitted with other ratio settings by changing pumps.

A secondary pump is fitted to the back of the unit for use as a primer spray or solvent flush pump as required.

The fixed ratio system is a longstanding method supporting reliability from CoverCat designed and made in the UK brand.

The unit is succsessfully used in a number of areas where a high volume application to a tight schedule is key.

The use of the 300 Air Motor and the new control system allows a free flowing air passage to greatly improve on CoverCat superior power.

With a slimline design the unit can be fitted into tight spaces and allows passage through a 800mm wide doorway possible.
The Unit comes supplied with 3/4” air inlet which includes Air Filter, Regulator with pressure gauge and Lubricator. All are all made from metal case components to avoid damage in industrial areas.

The unit capable of high pressure delivery of 10.6 litres/min (2.2gpm) at 20 cycles/min.

Hose lengths up to 45m can be used with a standard 5 meter whip hose to a total of 50metres.
Maximum elevation is recommended at 20 metres between machine and spray gun.

The unit is also available in various formats customised to individual reqirements
